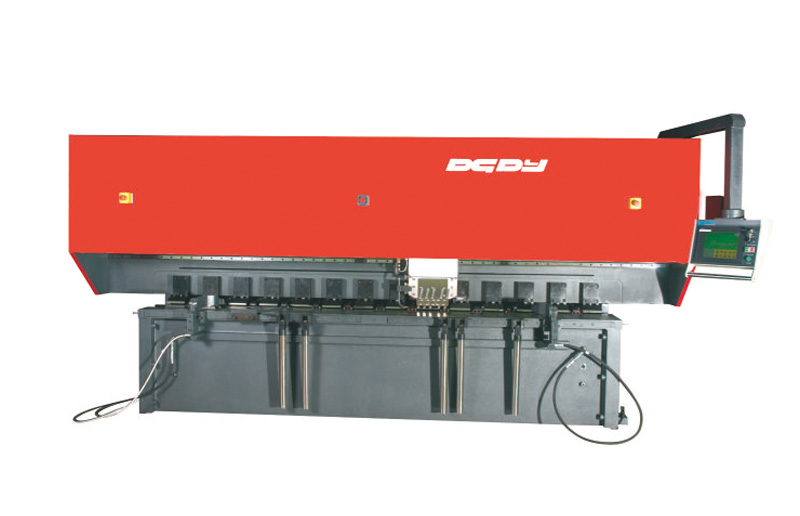

DPCK CNC V-Type Milling Machine
1、Machine body welded by steel plate, after treatment, less deform of machine body.
2、Imported control system, man-machine interface, stable and precise
3、The transmission components are all made of high-precision screw guides, high precision and low noise.
4、The positioning part is equipped with imported AC servo driver and motor, high speed and power save
5、The hydraulic components are all well-known brands in Taiwan. The hydraulic part and the transmission part are interlocked, to make sure the movement smoothly, safe and reliable.
E-mail：[email protected]
Product Details
Picture Show
Product Application
1、Machine body welded by steel plate, after treatment, less deform of machine body.
2、 Imported control system, man-machine interface, stable and precise
3、The transmission components are all made of high-precision screw guides, high precision and low noise.
4、The positioning part is equipped with imported AC servo driver and motor, high speed and power save
5、The hydraulic components are all well-known brands in Taiwan. The hydraulic part and the transmission part are interlocked, to make sure the movement smoothly, safe and reliable.
Technical Parameters

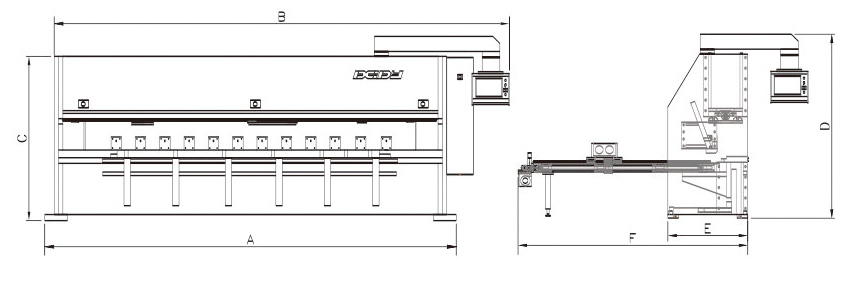

| A | B | C | D | E | F | |
| DDPK3200 | 4250 | 5000 | 2080 | 2280 | 1000 | 2700 |
| DDPK4200 | 5500 | 6000 | 2080 | 2280 | 1000 | 2700 |
| DDPK5200 | 6380 | 7000 | 2080 | 2280 | 1000 | 2700 |
| DDPK6200 | 7550 | 8100 | 2150 | 2380 | 1200 | 2900 |
| Technical Specification | Unit | DDPK3200 | DDPK4200 | DDPK5200 | DDPK6200 | |
| Sheet Thickness | mm | 0.3-6 | 0.3-6 | 0.3-6 | 0.3-6 | |
| Sheet Width | mm | 9-1600 | 9-1600 | 9-1600 | 9-1600 | |
| Sheet Length | mm | 100-3200 | 100-4200 | 100-5200 | 100-6200 | |
| X Motor Power | Kw | 3.5 | 3.5 | 3.5 | 3.5 | |
| X Cutting Speed | m/min | 5-55/5-105* | 5-55/5-105* | 5-55/5-105* | 5-55/5-105* | |
| X range | mm | 3250 | 4250 | 5250 | 6250 | |
| Y Motor Power | Kw | 0.4 | 0.4 | 0.4 | 0.4 | |
| Y Feeding Speed | m/min | 8-10 | 8-10 | 8-10 | 8-10 | |
| Y range | mm | 15 | 15 | 15 | 15 | |
| Z Motor Power | Kw | 1 | 1 | 1 | 1 | |
| Z Feeding Speed | m/min | 6-15 | 6-15 | 6-15 | 6-15 | |
| Z range | mm | 1600 | 1600 | 1600 | 1600 | |
| Height of Work Table | mm | 700 | 700 | 750 | 750 | |
| Hydraulic Main Motor | Kw | 2.2 | 2.2 | 2.2 | 2.2 | |
| Oil Tank Capacity | L | 200 | 200 | 200 | 200 | |
| Machine Weight(Approx) | Kg | 11200 | 14500 | 19500 | 22100 | |
| Dimension(Width) | mm | 4250 | 5500 | 6380 | 7550 | |
| Dimension(Depth) | mm | 2350 | 2350 | 2650 | 2850 | |
| Dimension(Height) | mm | 2030 | 2080 | 2080 | 2150 | |
