Electro Hydraulic Servo CNC Bending Machine
Working table length: Max. size of bending material
Space of column: The distance between the two side plates of machine. Material size bigger than this will be limited by throat depth.
Max. bending size of plates, which material size larger than space of column
Opening height: Working height between up ram and bottom working table
E-mail：[email protected]
Product Details

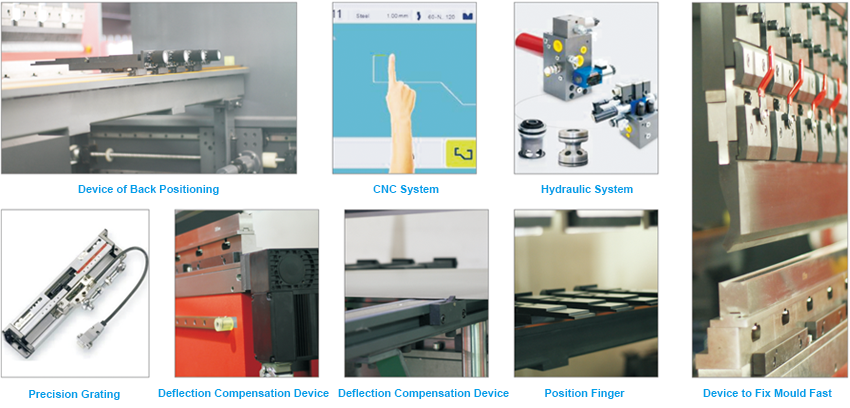

Picture Show
Product Application
Working table length: Max. size of bending material
Space of column: The distance between the two side plates of machine. Material size bigger than this will be limited by throat depth.
Max. bending size of plates, which material size larger than space of column
Opening height: Working height between up ram and bottom working table

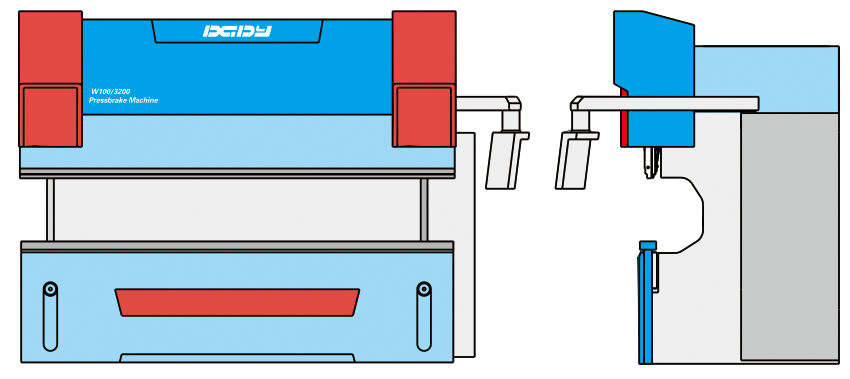

Technical Parameters
| Specifications | UNIT | MODEL | ||||||||||||||||||
| W-40/1500* | W-100/2500 | W-100/3200 | W-100/4100 | W-160/3200 | W-160/4100 | W-200/3200 | W-200/4100 | W-200/5000 | W-200/6000 | W-250/3200 | W-250/4100 | W-250/5000 | W-250/6000 | W-320/3200 | W-320/4100 | W-320/5000 | W-320/6000 | |||
| Bending force | Kn | 400 | 1000 | 1000 | 1000 | 1600 | 1600 | 2000 | 2000 | 2000 | 2000 | 2500 | 2500 | 2500 | 2500 | 3200 | 3200 | 3200 | 3200 | |
| Usable bending length | mm | 1500 | 2500 | 3200 | 4100 | 3200 | 4100 | 3200 | 4100 | 5000 | 6000 | 3200 | 4100 | 5000 | 6000 | 3200 | 4100 | 5000 | 6000 | |
| max.open height | mm | 400 | 460 | 460 | 460 | 460 | 460 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Distance between housings | mm | 1140 | 2010 | 2700 | 3600 | 2700 | 3600 | 2700 | 3600 | 4200 | 5200 | 2700 | 3600 | 4200 | 5200 | 2700 | 3600 | 4200 | 5200 | |
| Depth of throat | mm | 300 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 450 | 450 | 450 | 450 | 450 | 450 | |
| Ram stroke | mm | 160 | 200 | 200 | 200 | 200 | 200 | 240 | 240 | 240 | 240 | 240 | 250 | 250 | 250 | 300 | 300 | 300 | 300 | |
| Approaching | mm/s | 150 | 200 | 210 | 210 | 200 | 200 | 170 | 170 | 170 | 170 | 120 | 120 | 120 | 120 | 100 | 100 | 100 | 100 | |
| Bending | mm/s | 8 | 12 | 12 | 10 | 11 | 11 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 9 | 9 | 9 | 9 | |
| Returning | mm/s | 120 | 150 | 150 | 150 | 150 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 110 | 110 | 110 | 110 | 110 | |
| Main motor power | Kw | 4 | 7.5 | 7.5 | 7.5 | 15 | 15 | 15 | 15 | 15 | 15 | 18.5 | 18.5 | 22 | 22 | 30 | 30 | 30 | 30 | |
| Oil tank capacity | L | 160 | 290 | 400 | 400 | 420 | 420 | 420 | 5S0 | 600 | 600 | 430 | 550 | 750 | 750 | 700 | 900 | 900 | 900 | |
|
Overall dimensions |
Lenght | mm | 1700 | 2700 | 4300 | 4300 | 3500 | 4300 | 3500 | 4300 | 5300 | 6300 | 3500 | 4300 | 5300 | 6300 | 3550 | 4300 | 5300 | 6300 |
| Width | mm | 1540 | 1600 | 1600 | 1600 | 1650 | 1650 | 1900 | 1900 | 2250 | 2250 | 1900 | 1900 | 2300 | 2300 | 2250 | 2350 | 23SO | 2350 | |
| Hoight | mm | 2350 | 2400 | 2500 | 2550 | 2630 | 2630 | 2750 | 2750 | 3300 | 3300 | 2750 | 2750 | 3300 | 3500 | 3150 | 3200 | 3450 | 3500 | |
| Net weight approx | Kg | 3800 | 7500 | 9800 | 11500 | 11800 | 13800 | 14700 | 16000 | 20500 | 25000 | 15000 | 18000 | 25100 | 29800 | 18500 | 22800 | 28800 | 33000 | |
