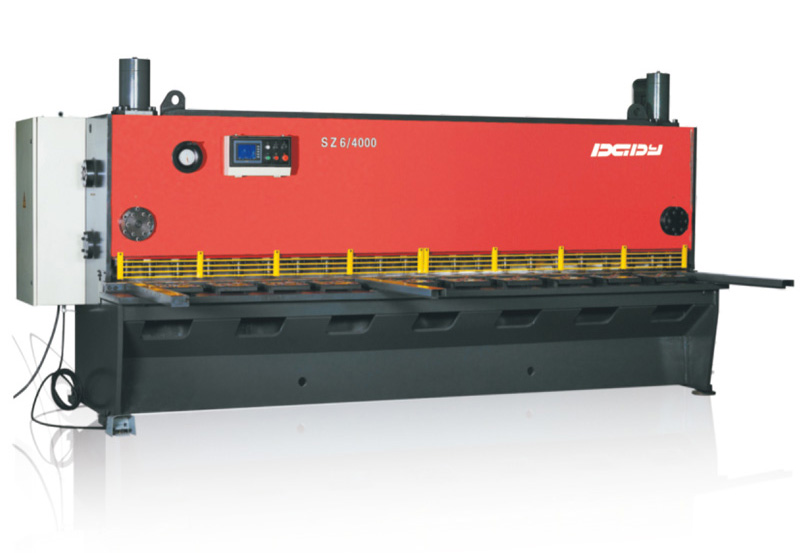

SZJ CNC Guillotine Shears
Integral welding machine body
Hydraulic drive, return by nitrogen, stable switching
Rectangular blade, four blades available, long lifetime
Automatic adjust of knives space
Memory counting function, multi-step cutting
Alignment by light, precise and convenient
E-mail：[email protected]
Product Details
Picture Show
Integral welding machine body
Hydraulic drive, return by nitrogen, stable switching
Rectangular blade, four blades available, long lifetime
Automatic adjust of knives space
Memory counting function, multi-step cutting
Alignment by light, precise and convenient
Technical Parameters
| Specifications | UNIT | MODEL | |||||||||||||||||
| SZJ/31 | SZJ6/40 | SZQ8/31 | SZQ8/40 | SZQ8/62 | SZQ13/31 | SZQ13/40 | SZQ13/62 | SZQ16/31 | SZQ16/40 | SZQ16/62 | SZQ20/31 | SZQ20/40 | SZQ20/62 | SZQ25/31 | SZQ25/40 | SZQ30/31 | |||
|
Shear thickness |
mm | 6 | 6 | 8 | 8 | 8 | 13 | 13 | 13 | 16 | 16 | 16 | 20 | 20 | 20 | 25 | 25 | 30 | |
| mm | 3 | 3 | 4 | 4 | 4 | 8 | 8 | 8 | 10 | 10 | 10 | 12 | 12 | 12 | 16 | 16 | 20 | ||
| shear length | mm | 3100 | 4000 | 3100 | 4000 | 6200 | 3100 | 4000 | 6200 | 3100 | 4000 | 6200 | 3100 | 4000 | 6200 | 3100 | 4000 | 3100 | |
| shear pressure | Kn | 150 | 150 | 275 | 275 | 275 | 580 | 760 | 620 | 850 | 850 | 850 | 1380 | 1380 | 1380 | 1960 | 1500 | 2200 | |
| backgauge range | mm | 750 | 750 | 750 | 750 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| shear angle | degree | 2 | 2 | 0.5-2.0 | 0.5-2.0 | 0.5-2.5 | 0.5-2.5 | 0.5-2.0 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-3.5 | 0.5-3.5 | 0.5-3.5 | |
| strokes | spm | 15-45 | 12-45 | 15-45 | 13-45 | 8-35 | 7-35 | 10-30 | 7-45 | 9-33 | 8-30 | 7-20 | 7-35 | 5-20 | 5-18 | 5-40 | 5-20 | 4-15 | |
| *18-45 | *15-45 | ||||||||||||||||||
| Depth of throat | mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||
| Oil tank capacity | L | 230 | 250 | 350 | 400 | 680 | 450 | 560 | 680 | 590 | 590 | 680 | 590 | 620 | 650 | 1050 | 1100 | 1000 | |
| Main motor power | Kw | 7.5 | 7.5 | 11 | 15 | 22 | 15 | 22 | 30 | 37 | 37 | 37 | 45 | 45 | 30*2 | 55 | 55 | 55 | |
|
Overall dimensions |
Lenght | mm | 3500 | 4410 | 3760 | 4750 | 7090 | 3860 | 4885 | 7100 | 3870 | 5020 | 7135 | 3980 | 5050 | 7300 | 4260 | 5340 | 4485 |
| *4000 | *4700 | ||||||||||||||||||
| Width | mm | 2120 | 2200 | 1850 | 1920 | 2450 | 1960 | 2000 | 2550 | 1950 | 2190 | 2550 | 2050 | 2500 | 2600 | 2700 | 2700 | 2850 | |
| *1800 | *1800 | ||||||||||||||||||
| Height | mm | 2100 | 2260 | 2180 | 2325 | 2820 | 2320 | 2500 | 2830 | 2350 | 2580 | 2870 | 2480 | 3150 | 3200 | 2885 | 3740 | 2985 | |
| *1500 | *1640 | ||||||||||||||||||
| Net weight approx | Kg | *7000 | 10800 | 6500 | 10800 | 24000 | 8700 | 17000 | 29800 | 14000 | 18000 | 36000 | 17000 | 30500 | 51500 | 28000 | 38000 | 32000 | |
| *9700 | |||||||||||||||||||
